Detalles del producto

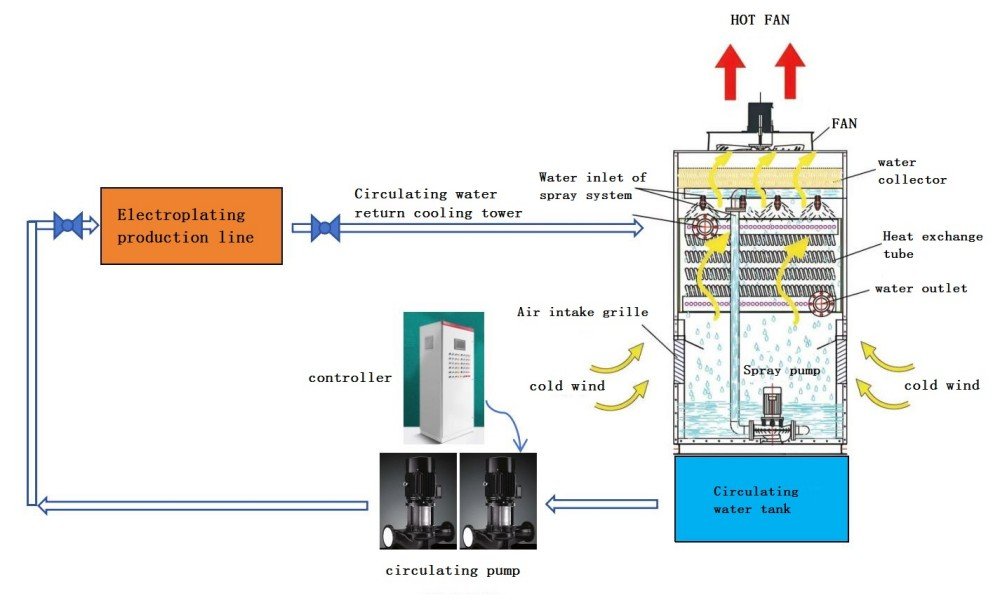

1. Proceso del sistema de circulación de agua de refrigeración
El sistema de circulación de agua de refrigeración se divide en dos conjuntos: el de suministro de agua de refrigeración y el de retorno de agua de circulación. Dos conjuntos de bombas de suministro de agua están conectados en serie en cada línea de suministro. La presión del suministro de agua y el inversor se controlan conjuntamente para garantizar el arranque y la parada de la bomba de agua de circulación y mantener una presión de agua de circulación constante.
2. Parámetros principales de la torre de enfriamiento
Model | KCN-100 | classification | Designation | Material | |
Cooling water volume | m3/h | 150 | Cooler system
| Cooler Coil | 304 stainless steel pipe diameter 19mm |
Cooler bracket | Galvanized profile | ||||
Cooling capacity | 500000Kcal/h | Pressure gauge | National standard, water inlet configuration | ||
Operating pressure | MPa | 0．2-0.6 | Cooling manifold | 304 Stainless Steel Pipe | |
Water inlet and outlet pipe diameter | Water Inlet （mm） | DN100 | Temperature measurement probe | 304 Stainless Steel PT100 | |
Water outlet （mm） | DN100 | Flange | 304, pressure resistance level 1.0Mpa | ||
Sewage outlet （mm） | DN32 |
Ball valve | Special ball valve | ||
Water filling port （mm） | DN25 | Float valve | |||
Fan
| Power (Kw) | 1.5 | Exhaust system | Fan | Protection grade IP55, insulation grade F |
Quantity (set) | 4 | Fan bracket mesh cover | Channel steel fan support frame and protective barrel | ||
Air volume (m³/h) | 18000 | Water collector | Reduce the rate of water bleaching, material PVC | ||
Spray pump
| Power (Kw) | 2.2 | Sprinkler system | Spray pump | IP55，F 级. |
Quantity (set) | 1 | Nozzle | Material: ABS, large diameter and large flow, not easy to scale, easy to disassemble and replace | ||
Flow (m³/h) | 100 | Bracket | Galvanized profile bracket | ||
Lift
LX WX H（mm） | 6 | Spray pipe accessories | PVC pipe | ||
Host appearance | 2800*2000*2800 | shell | External panels | 2mm，Magnesium aluminum zinc plate | |
Shipping Weight | Net weight | 1800kg | Splicing screws | Dacromet screws and nuts | |
Operating weight | Complete Machine | 4000kg | Bottom bracket | Galvanized channel steel frame | |
Auxiliary machine
| Power (Kw) | Circulatory system | Water tank | ||
Quantity(P) | |||||
Flow (m³/h) | Base frame | Galvanized Channel Steel | |||
Lift （m） | Circulation pump | ||||
Electronic control system | Temperature display | Operation monitoring | Control System | Electric control box | Dust and water resistance level IP55 |
Low voltage | 380v，Zhengtai | ||||
Startup method | Direct Start | ||||
Temperature controller | Automatically control the fan according to the temperature | ||||
